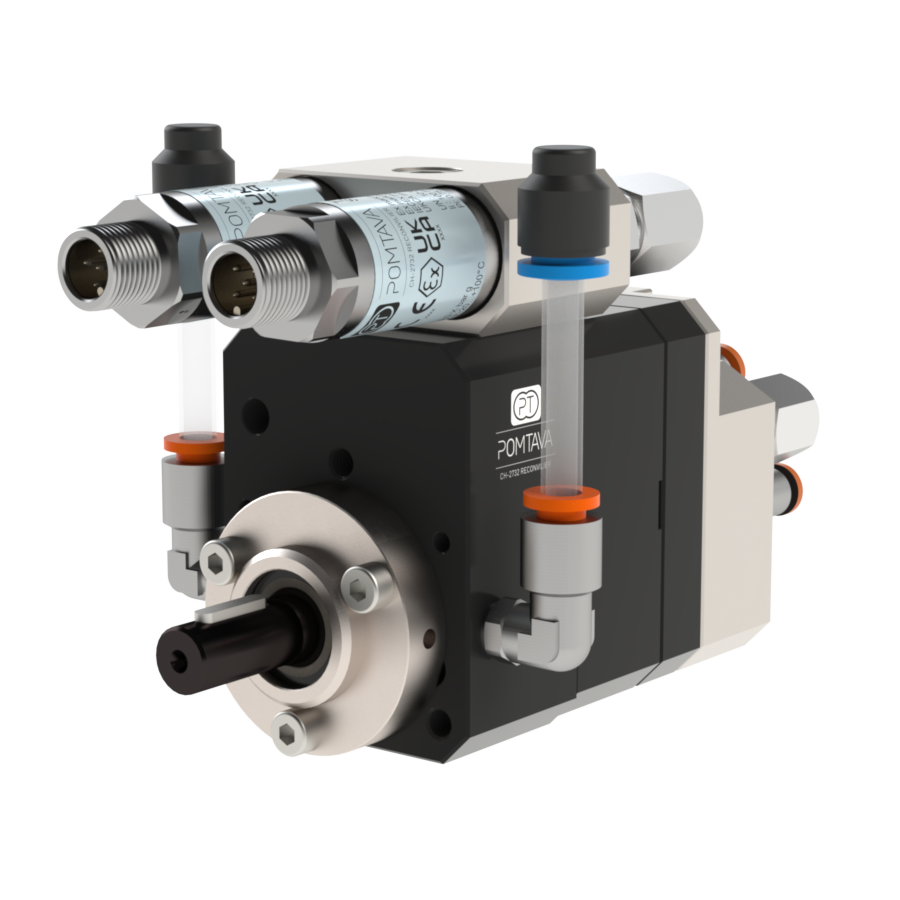

Type RPPT
Compact paint pumps
The RPPT family of pumps is available in 2 main models: RPPT-4-1 / RPPT-4-3. The main difference between each model is the range of flow rates offered.
This range of pumps is suitable for all types of paint and hardener up to pressures of 15 bar, for your automotive or industrial paint applications. Innovative "floating" gear technology gives these pumps excellent flushability. Optional ADLC treatment guarantees longer service life and fast, efficient cleaning, especially when coupled with the pneumatically-controlled bypass system.
Easy maintenance of the sealing section means extremely short downtimes, optimizing your production.
General
► Product dosed
water- and solvent-based paints, hardeners
► Nominal accuracy
±2% of nominal value
► Applications
universal (primer, base, varnish)
► Repeatability
0.1 % of previous value
► Viscosity
from 10 to 1'000 mPas
► Materials
hardened stainless steel
► Speed
from 10 to 200 rpm
► Operating set
Reduced, standard, enlarged (depending on viscosity)
Models
Pump type

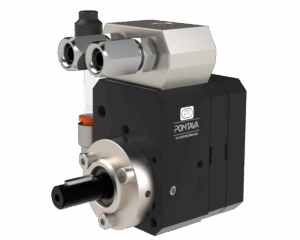

RPPT-4-1
- Displacement (cc/rev)
1.2 - 3.0 - 4.5 - 6.0 - 9.0
- Flow rate (ml/min)
12 to 240 - 30 to 600 - 45 to 900 - 60 to 1200 - 90 to 1800
- Working pressure
Up to 15 bar
- Treatment
ADLC
- I/O location
On the body
- Connection
G1/4″ (connection block for optional pressure sensors)
- Tree height
20.25mm (other heights optional)
Pump type

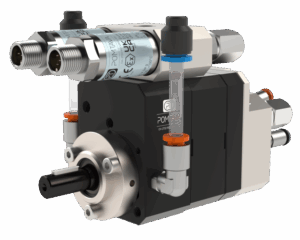

RPPT-4-3
- Displacement (cc/rev)
1.2 - 3.0 - 4.5 - 6.0 - 9.0
- Flow rate (ml/min)
12 to 240 - 30 to 600 - 45 to 900 - 60 to 1200 - 90 to 1800
- Working pressure
Up to 15 bar
- Treatment
ADLC
- I/O location
On the body
- Connection
G1/4″ (connection block for optional pressure sensors)
- Tree height
20.25mm (other heights optional)
