HM type turbine flowmeters
Measuring and dosing solvents and water

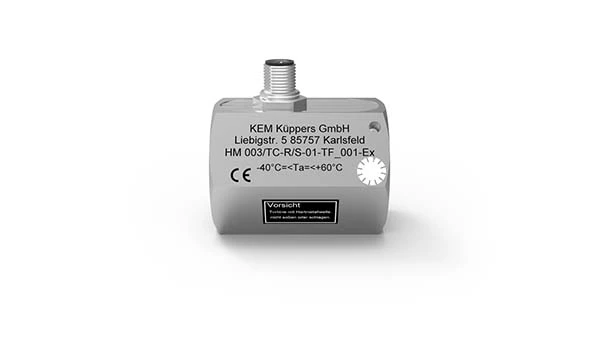

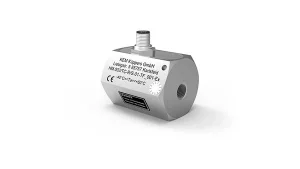

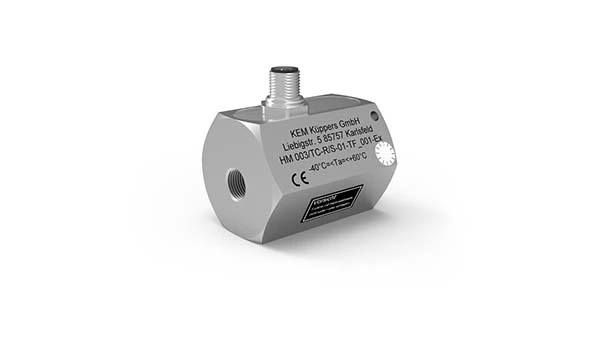

The HM TC-R series of turbine flow meters (TC-R for BSPP ports and compact electronics) is used to measure continuous and discontinuous flow rates. Mainly used for non-lubricating fluids. Particularly well suited to low-viscosity fluids such as water and solvents.
As a KEM Küppers dealer, POMTAVA can supply you with any type of flow meter to suit your needs.
Models
Turbine flow meter
HM R
- Measuring range (l/min)
0.3 to 400 l/min
- Repeatability
±0.05 % (under the same conditions)
- Linearity
±1 % of the current flow rate
- Viscosity range
0.8 to 30 mm²/s
- Body
AISI 316L (other options available on request)
- Propeller
AISI 329 (other options available upon request)
- Pressure
up to 630 bar
- Working temperature
-60°C to +350°C
Turbine flow meter
HM R
- Measuring range (l/min)
0.3 to 85 l/min
- Repeatability
±0.05 % (under the same conditions)
- Linearity
±1 % of the current flow rate
- Viscosity range
0.6 to 1 mm²/s
- Body
AISI 303 (other options available on request)
- Propeller
AISI 303 (other options available on request)
- Pressure
up to 630 bar
- Working temperature
-40°C to +80°C
