Type 15
Pumps for aggressive products
The pumps in the Type 15 family are available in three main models: 1615 / 2615 /3615. The main difference between each model is the range of flow rates it offers.

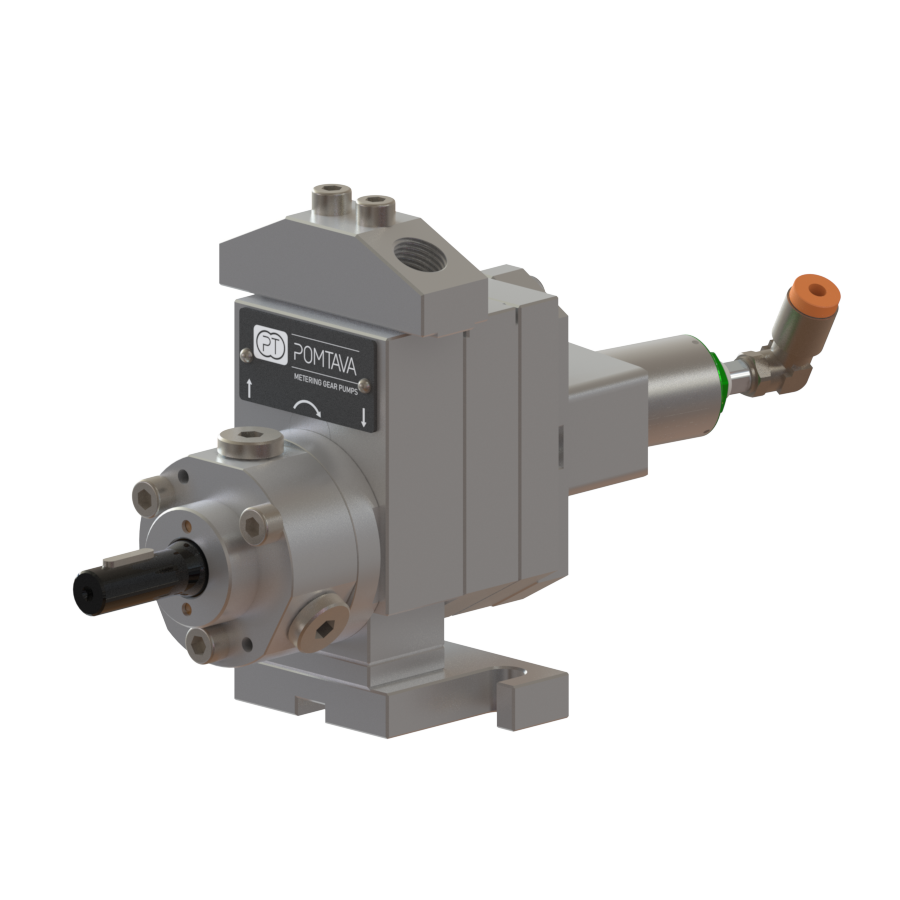

This range of pumps is specially designed for dosing water, solvents, or any type of low-viscosity, non-loaded, and/or non-greasy fluid up to pressures of 15 bar. An optional ADLC surface treatment is available to further improve the pump's service life and facilitate rinsing, thanks to the low friction coefficient of this coating. The 15-4 series pumps can also be equipped with a bypass block controlled by a pneumatic valve to improve the quality and duration of rinsing.
PEEK wheels offer resistance to heat, chemicals, and wear, while maintaining low friction and dimensional stability. These properties improve the performance, durability, and reliability of pumps, even in demanding environments.
General
Product dosage
all types of low-viscosity products
Applications
chemistry, painting, etc.
Viscosity
from 0.3 to 10 mPas
Rotation speed
from 10 to 120 rpm
Nominal accuracy
±2% of nominal value
Repetability
0.1 % of previous value
Materials
hardened stainless steel, 316L, 316Ti
Models

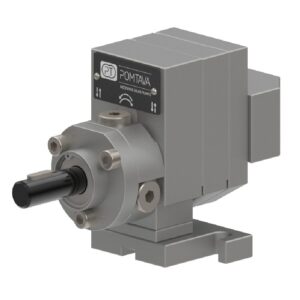

Type 15
1615-1
- Displacement (cc/rev)
0.3 - 0.6 - 1.2 - 1.8 - 2.4 - 3.0
- Flow rate (ml/min)
3 to 60 - 6 to 120 - 12 to 240 - 18 to 360 - 24 to 480 - 30 to 600
- Working pressure
Up to 15 bar
- ADLC processing
(optional)
- Connection
G1/8″ / G1/4″ / G3/8″ (connection block for optional pressure transmitters)
- Tree height
40mm (other heights optional)

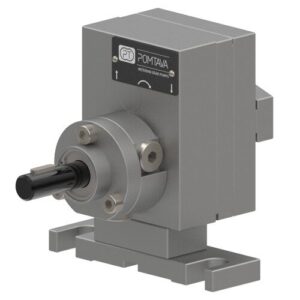

Type 15
2615-1
- Displacement (cc/rev)
2.4 – 4.5 – 3.0 – 4.5 – 6.0 – 10.0
- Flow rate (ml/min)
12 to 240 - 24 to 480 - 30 to 600 - 45 to 900 - 60 to 1200 - 100 to 2000
- Working pressure
Up to 15 bar
- ADLC processing
(optional)
- Connection
G1/8″ / G1/4″ / G3/8″ (connection block for optional pressure transmitters)
- Tree height
51mm (other heights optional)

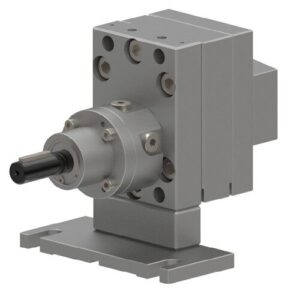

Type 15
3615-1
- Displacement (cc/rev)
10.0 – 16.0 – 22.0
- Flow rate (ml/min)
60 to 1200 - 100 to 2000 - 160 to 3200 - 220 to 4400
- Working pressure
Up to 15 bar
- ADLC processing
(optional)
- Connection
G1/8″ / G1/4″ / G3/8″ (connection block for optional pressure transmitters)
- Tree height
51mm (other heights optional)

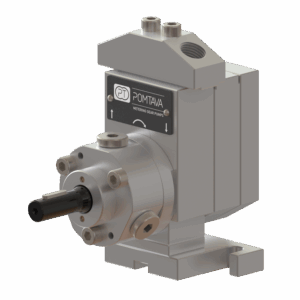

Type 15
1615-4
- Available types
1615-4-1: standard version / 1615-4-2: version for bypass block
- Displacement (cc/rev)
0.3 - 0.6 - 1.2 - 1.8 - 2.4 - 3.0
- Flow rate (ml/min)
3 to 60 - 6 to 120 - 12 to 240 - 18 to 360 - 24 to 480 - 30 to 600
- Working pressure
Up to 15 bar
- ADLC processing
(optional)
- Connection
G1/8″ / G1/4″ / G3/8″ (connection block for optional pressure transmitters)
- Tree height
40mm (other heights optional)

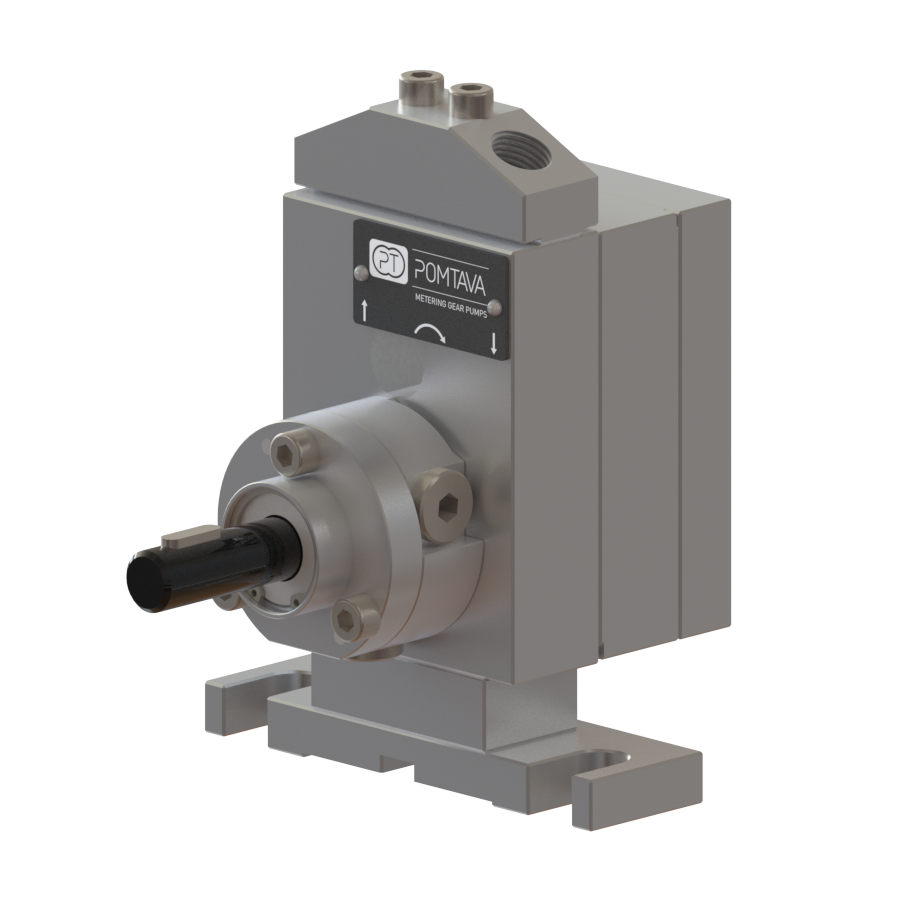

Type 15
2615-4
- Available types
1615-4-1: standard version / 1615-4-2: version for bypass block
- Displacement (cc/rev)
2.4 – 4.5 – 3.0 – 4.5 – 6.0 – 10.0
- Flow rate (ml/min)
12 to 240 - 24 to 480 - 30 to 600 - 45 to 900 - 60 to 1200 - 100 to 2000
- Working pressure
Up to 15 bar
- ADLC processing
(optional)
- Connection
G1/8″ / G1/4″ / G3/8″ (connection block for optional pressure transmitters)
- Tree height
51mm (other heights optional)
