PTMIX

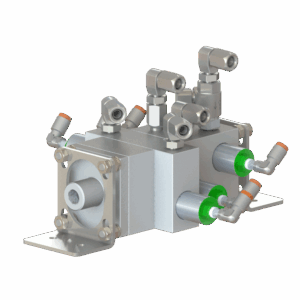

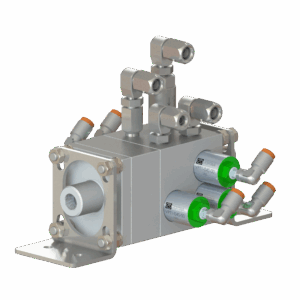

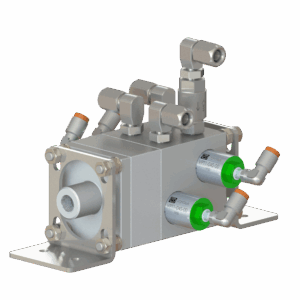

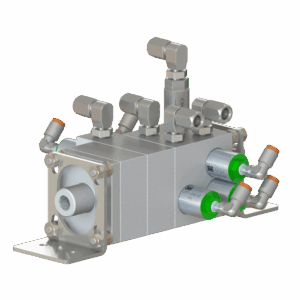

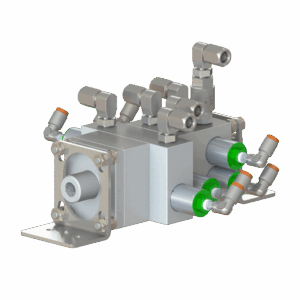

PTMIX - 2K static mixer
The PTMIX type 2-component static mixer combines a design
efficiency. Made entirely of stainless steel,
its service life is exceptional. Its design, with no retention zone in
makes it an extremely flushable system component. Inputs to the
are controlled by POMTAVA pneumatic valves. The
The 2 components meet via non-return valves
specially designed for this function, preventing contamination.
The PTMIX static mixer is available in several configurations:
no dump, 1 dump on resin side, 1 dump for each component. From
plus, each of these versions is available with 1 common solvent or 1 different solvent per component.
General
Product dosage
water- and solvent-based paints, hardeners
Working pressure
up to 40bars (depending on changer type)
Viscosity
from 1 to 1’000 mPas
Recirculation
each block can be recirculated with or without piloting
Product fittings
wide choice of pipe sizes
Materials
stainless steel
Valves
different models for different pressures and product types
Number of shades
up to 40 shades
Models
PTMIX-6
- Channel diameter
Ø5 / Ø6
- Max. pressure
20 bar
- Connection
G1/8″ / G1/4″
